CM311-1a魔百盒安装armbian-linux系统过程记录

硬件和软件准备
刷机
一些设置

硬件和软件准备

所需硬件如下

CM311-1a盒子及电源
USB数据线
RJ45网线
带WIFI的windows笔记本电脑
U盘

软件如下(获取链接见文章末)

Rufus
Nmap
USB-burning-tool
开心电视助手
Android镜像
Armbian镜像

首先, 利用Rufus制作Armbian的启动U盘(不细说了, 自行百度或者看文末的b站视频)
然后, 利用usb-burning-tool给盒子刷入带root的系统(需要开盒短接4R32针脚以欺骗HDMI)

此时盒子已经是安卓系统了
最后, 重新启动盒子. 开始下一步

刷机

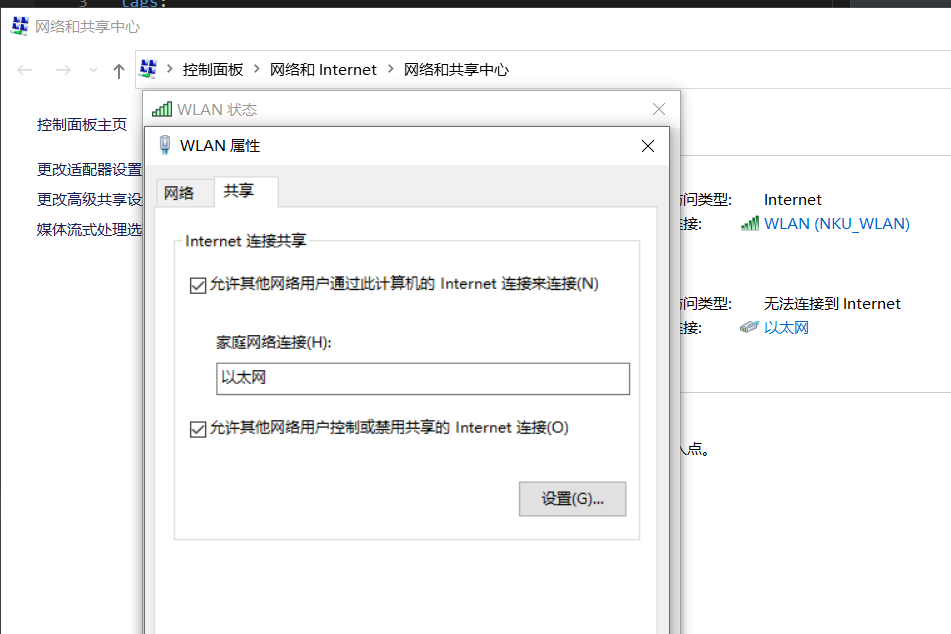

windows开启网络共享, 用自己的网络(wifi), ,开启以太网连接共享

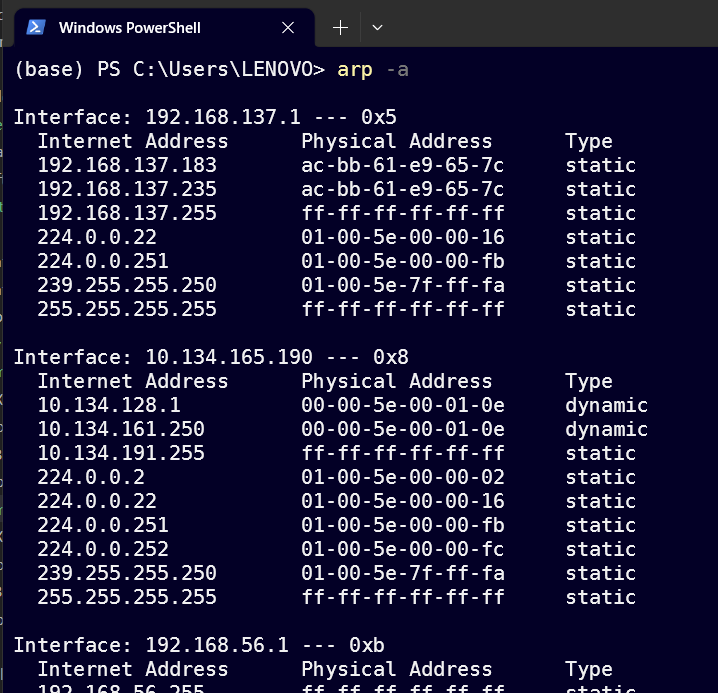

启动盒子之后, arp命令查看新增的IP地址, 可能就是盒子的IP

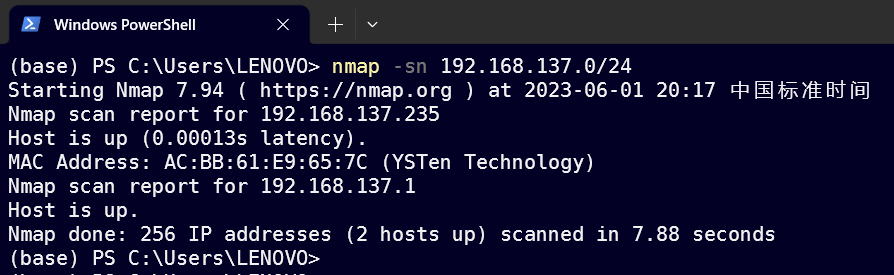

上面的懒得一个个试, 用nmap扫描即可
nmap -sn IP/MASK

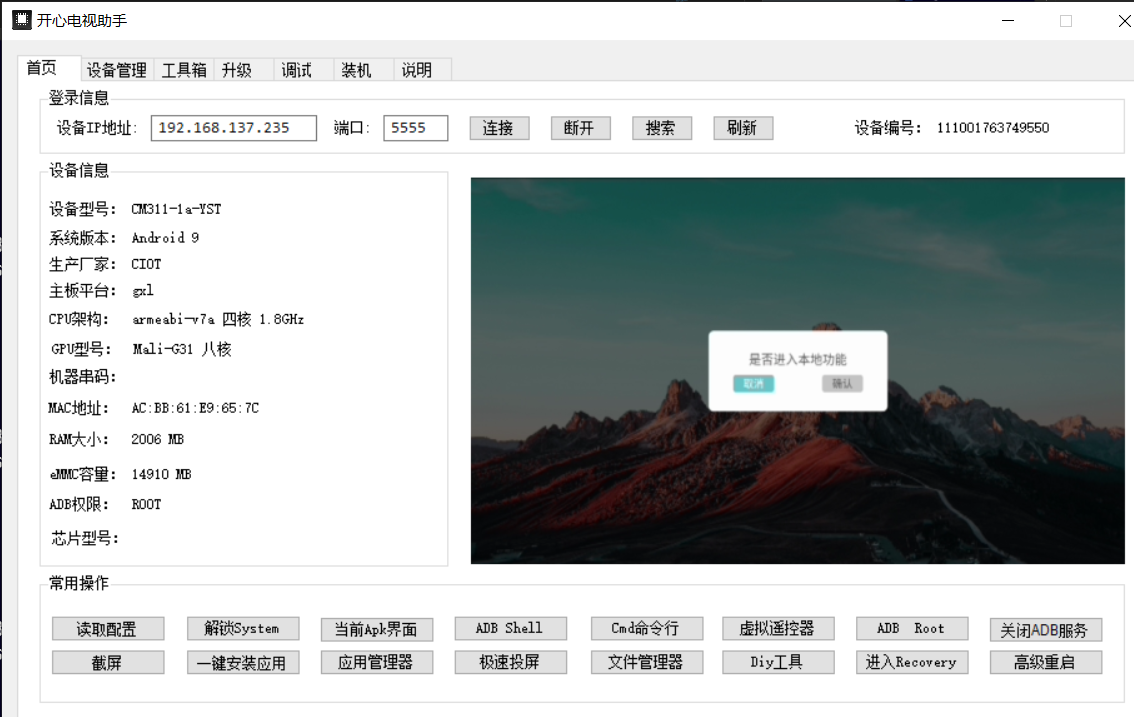

使用开心电视助手, 连接安卓系统

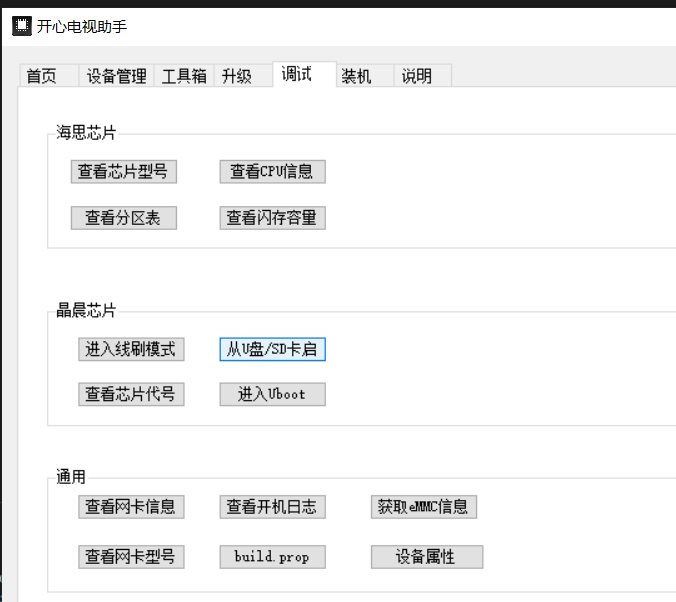

调试选项, 从U盘启动

这时候重点来了(参考B站, 见文末)

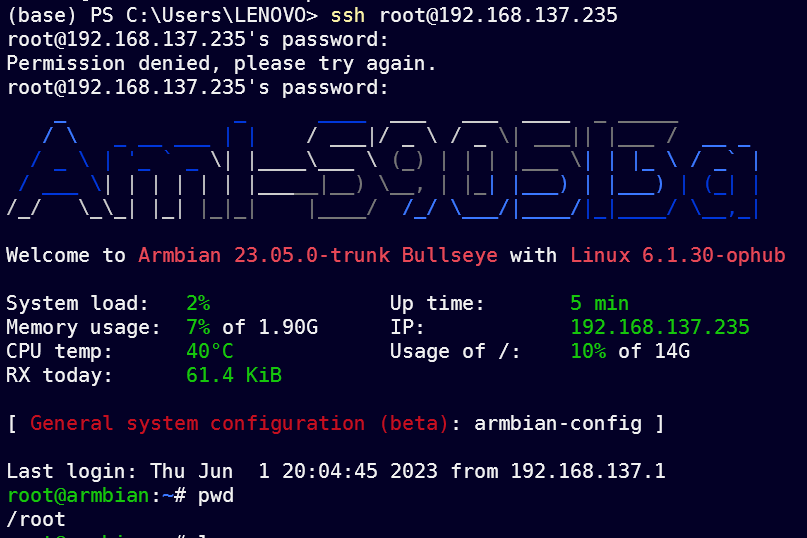

启动之后ssh连接盒子(密码1234), 然后盒子关机, 重新刷入armbian的U盘

关闭盒子的电源，拔下U盘。
重新将armbian刷入U盘；
将U盘插入盒子，开启电源，系统会自动从U盘引导armbian

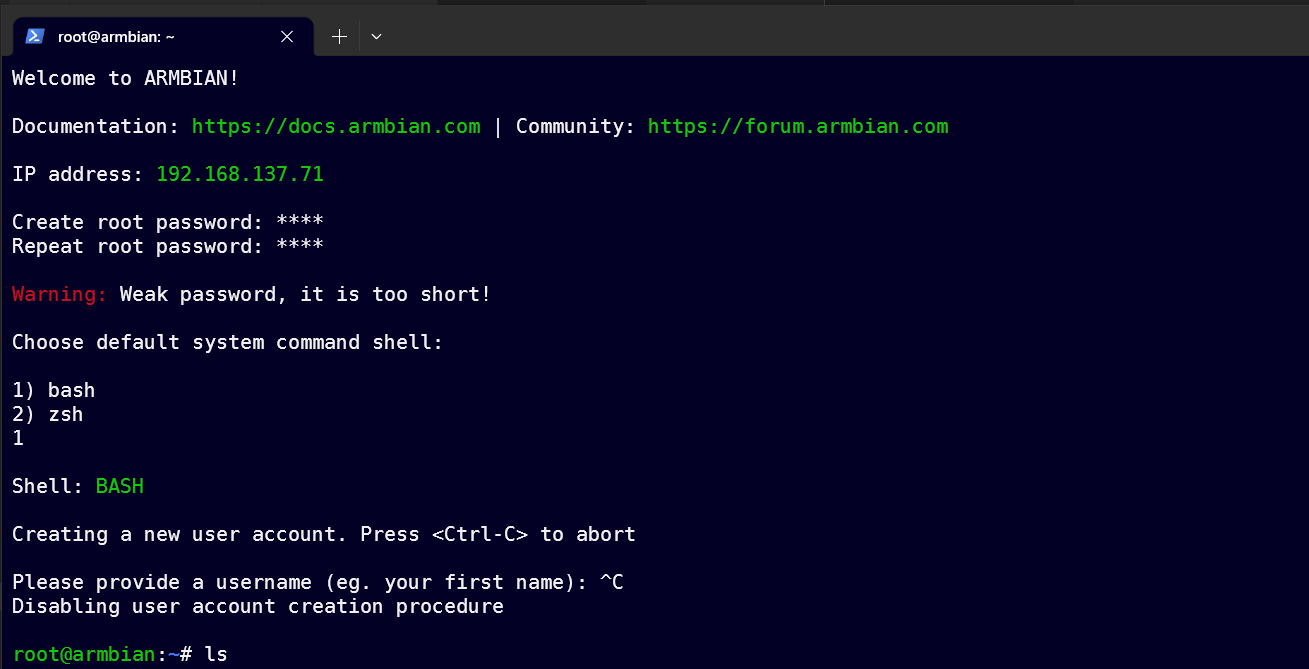

进入ssh终端(可能会很慢,多等), 设置root

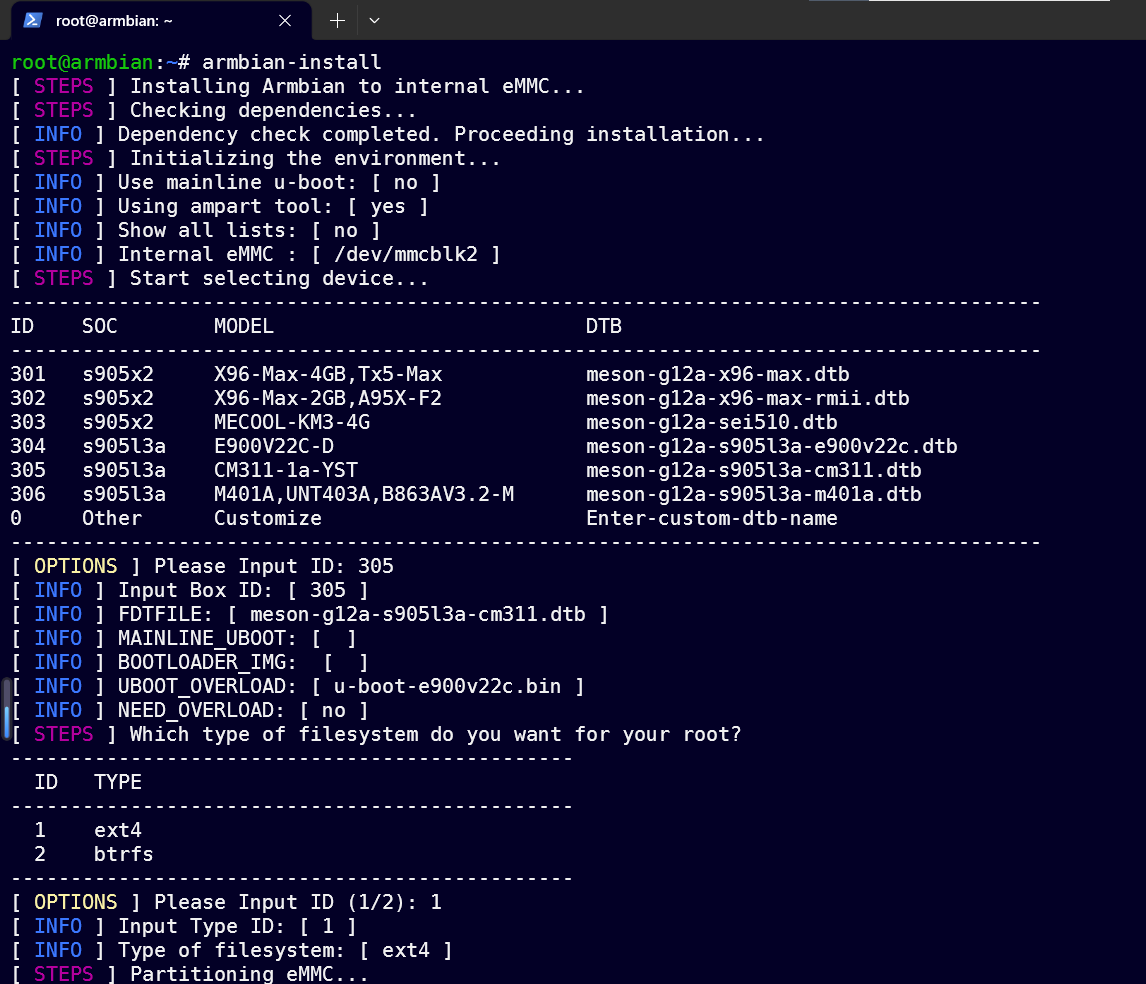

执行armbian-install安装到emmc, 选择我的型号305

根据提示重启, 重新ssh.可能会出现如下问题

@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@    WARNING: REMOTE HOST IDENTIFICATION HAS CHANGED!     @
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
IT IS POSSIBLE THAT SOMEONE IS DOING SOMETHING NASTY!
Someone could be eavesdropping on you right now (man-in-the-middle attack)!
It is also possible that a host key has just been changed.
The fingerprint for the ECDSA key sent by the remote host is
SHA256:NzU/ySnxsKxzs3LuZOWKfi/P6R+szwNQsRmNRvrr/AU.
Please contact your system administrator.
Add correct host key in C:\\Users\\LENOVO/.ssh/known_hosts to get rid of this message.
Offending ECDSA key in C:\\Users\\LENOVO/.ssh/known_hosts:25
ECDSA host key for 192.168.137.71 has changed and you have requested strict checking.
Host key verification failed.

执行如下即可

1	ssh-keygen -R xxx.xxx.xxx.xxx

一些设置

如果上面没有重新刷入armbian, 会出现sudo失效的问题(治标)

chown root:root /mnt -R
chown root:root /etc -R
chown root:root /usr -R
chmod 4755 /usr/bin/sudo
chown man:root /var/cache/man -R
chmod g+s /var/cache/man -R

设置主源

1	nano /etc/apt/sources.list

写入如下

# 默认注释了源码镜像以提高 apt update 速度，如有需要可自行取消注释
deb https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye main contrib non-free
# deb-src https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye main contrib non-free

deb https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye-updates main contrib non-free
# deb-src https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye-updates main contrib non-free

deb https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye-backports main contrib non-free
# deb-src https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye-backports main contrib non-free

# deb https://mirrors.tuna.tsinghua.edu.cn/debian-security bullseye-security main contrib non-free
# # deb-src https://mirrors.tuna.tsinghua.edu.cn/debian-security bullseye-security main contrib non-free

deb https://security.debian.org/debian-security bullseye-security main contrib non-free
# deb-src https://security.debian.org/debian-security bullseye-security main contrib non-free

nano用法:改完之后ctrl+o, enter保存. 然后ctrl+x, y, enter

设置副源

1	sudo sed -i.bak 's#http://apt.armbian.com#https://mirrors.tuna.tsinghua.edu.cn/armbian#g' /etc/apt/sources.list.d/armbian.list

然后

1 2	apt update apt upgrade

设置固定IP, 方便ssh

1	vim /etc/network/interfaces

我的是192.168.137.0网段, 所以如下

auto eth0
iface eth0 inet static
  address 192.168.137.2
  netmask 255.255.255.0
  gateway 192.168.137.1
  dns-nameservers 8.8.8.8
  dns-nameservers 114.114.114.114
